This needs to be screwed down properly.

1. Image 1: 1 jumper
2. Image 2: 3 jumpers
3. Image 3: 2 jumpers</note>

Fit heat sink block to the silver brackets (the brackets may need adjusting). Add heat sink compound 203131 as required between block and processor, and fit black shim to the base.

Fit front plate, – fit connector 203133, 2 x screw 203186 and 2 x nut 201367.

Then solder on the cable that comes with power board 203130. Use heat shrink 203141

Select pins and connect as below see pic.

1. Red: pin no. 2
2. Yellow: pin no. 3
3. Black: pin no. 1

Fit SSD 203135 to base of box (check orientation), and fix down with screws supplied see pic below.

Fit SATA to FDD cable 203115 and SATA data cable 203125

Fit front panel then motherboard 202926. Use wide headed screws x4.

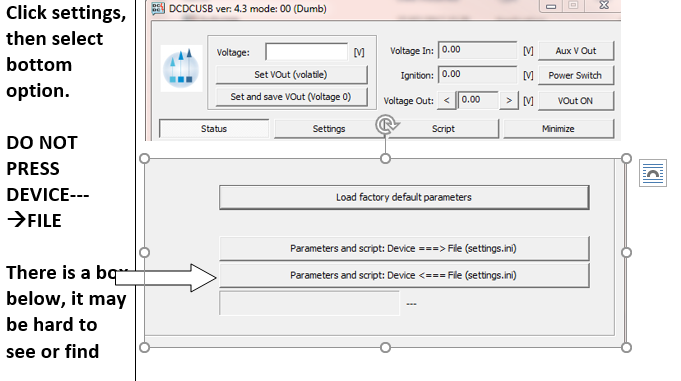

Fit Programmed power board 203130 to back plate.

Cable tie cables together as required – keep cables as low down as possible in the box to avoid fouling on the heat pipes. Snip off loose ends of ties, see pic below

Solder the cables supplied with 202928 PCB to connector 203126 x2. Cut off 9 pin connectors and solder as per pic below.

See below pic.

Yellow: pin no. 4, Green: pin no. 5, Black: pin no. 3.

Fit red / black cable supplied with PSU. From 2 pin header on 203130 to yellow header on motherboard. Add cable tie to secure in place, see pic below.

Add 2x side plates – screw holes to be near top side, see pic below.

After this, tidy up cables as needed with cable ties- ensure cables are safely routed and not touching the heat pipes. Ensure no cabling is pulled tight as it could dislodge a connector, see pic below.

====== Final test ======

Temporarily fit lid into place, this is now ready for final programming and test.

Items required - Poseidon unit - - Installer USB stick - - Keyboard and mouse - - Monitor with HDMI connection - - Ethernet cable

Plug in HDMI to HDMI 1. Plug in Ethernet cable to ETH1. Plug in keyboard and mouse to any USB. Plug in USB stick. Plug in green power connector.

Remove the USB stick, and press enter.

Remove and re insert the power cable – this will prompt the following screen:

Press enter.

This will then give more text as per image – request unlock disc. Press 1 then enter. see pic below

This will then do various scrolling, then ask for a log in prompt, see pic below: “OEM” then enter “root” then enter

Next type: /opt/install/setup.sh then press enter see pic below

Type serial no then press enter

Type batch ID then press enter

Main server prompt “Y” then enter

see pic below

The system will then continue with the self install.

This will then boot up to the main Poseidon screen. Check that the serial number on the screen ties up with the number on the unit.

Hold down: CTRL + Shift + semi colon, then press “C” Type: candump can0 and press enter

Data will then appear and scroll on the screen, see pic below

Then, press CTRL + “C,” Swap the connector to CAN1, Type: candump can1 and press enter, Data will then scroll as per previous

Press CTRL + “C”

Type: shutdown –t 0 then press enter Note the two spaces above! The unit will then shut down – add the green connector and box the unit

Refit lid using 4 x screws removed earlier. Ensure hands are clean of heat sink compound before doing this, to avoid getting smears on unit. Take care not to cross thread these screws, and do not over tighten.

Carefully clean finished box afterwards. Fit green connector to mating half on front plate. Give the unit a gentle shake to ensure there is nothing loose inside.
