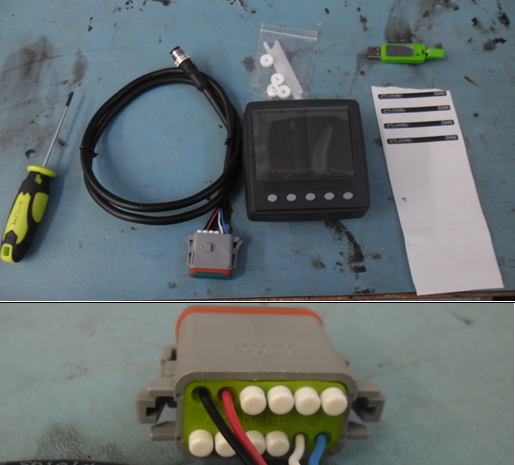

201353 Main unit 10500 cable (converts to 10502 cable) Fixings Software (USB stick stored in test boxes) Small flat blade screwdriver 3345 unit label and serial number label.

10500 cable modify to make a 10502. Note – check stock as this may have already been done. Original cable.

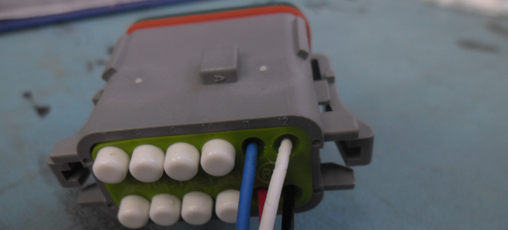

New cable.

Remove green center piece. Remove blue and white cables. Remove white pins and fit the blue and white cables in place as per picture. The pins should click into place when seated correctly. Replace green center piece.

First, check to see which version of software is going on to the unit – standard or Viking.

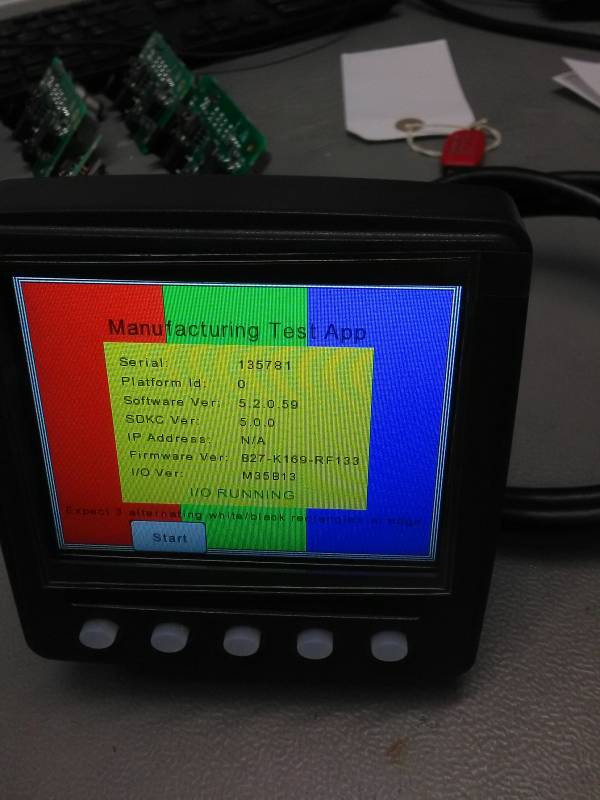

1. Plug into Monex, and wait for the Manufacturing screen to appear.
2. Then, insert USB into the back of the unit.
3. Wait for the unit to update.

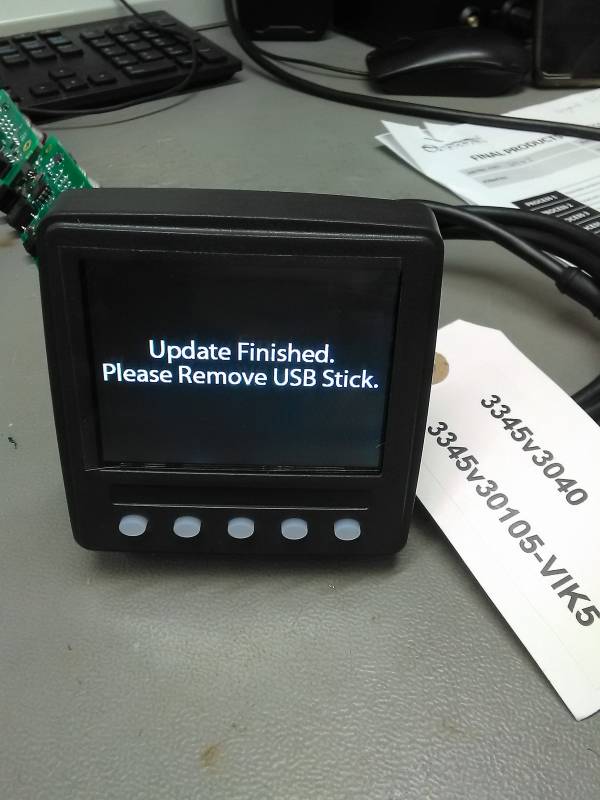

4. Remove USB, see pics below.
5. This should now come up with the Oceanic logo, then into the main screen.
6. Add the appropriate serial number by filling in the box on Monex then pressing the “set serial” button.

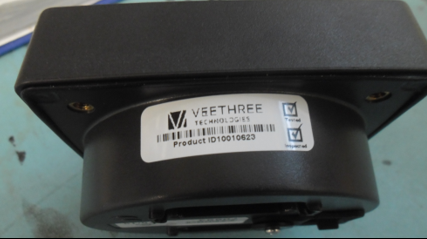

Remove this label from the side of the unit see pic below. Bold Text

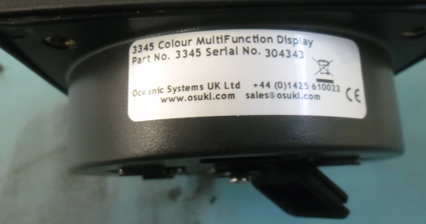

Set serial number on Monex and Fit this label to the top of the unit.

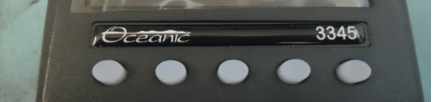

Fit dome sticker.

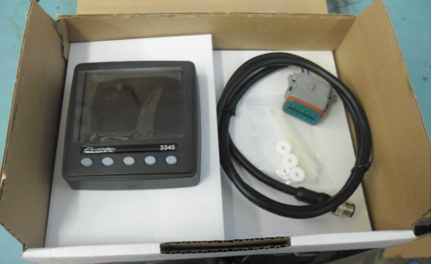

Pack with instructions, cable and fixing kit.

Then, into final packaging with QC sticker etc.

— Christine Walsh 21/02/2022 09:12updated
