5115 Build Instructions

The 5115 PCB assembly contains components that are sensitive to electrostatic discharge (ESD) – please make sure you are wearing your wrist strap when handling.

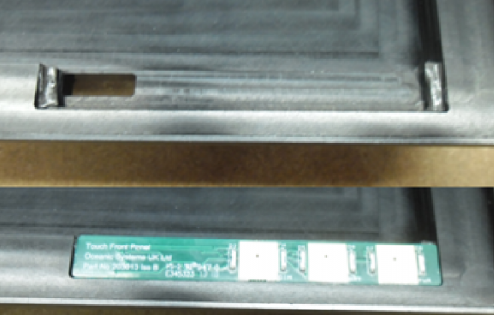

Using a File, modify the corners of the lower rear cover (203391). Identify with white marker see picture below.

Ensure all debris has been removed.

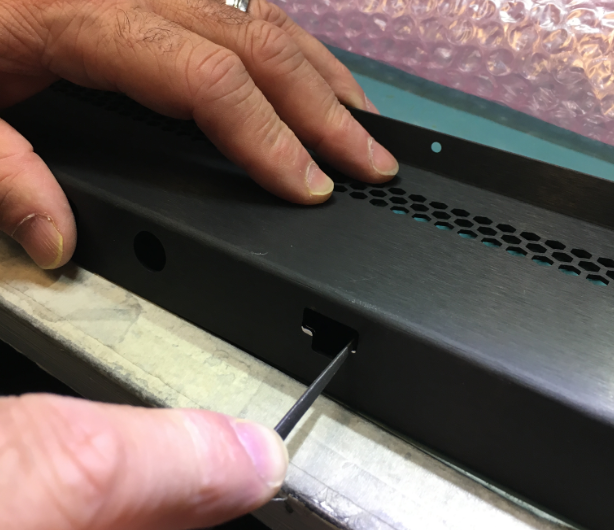

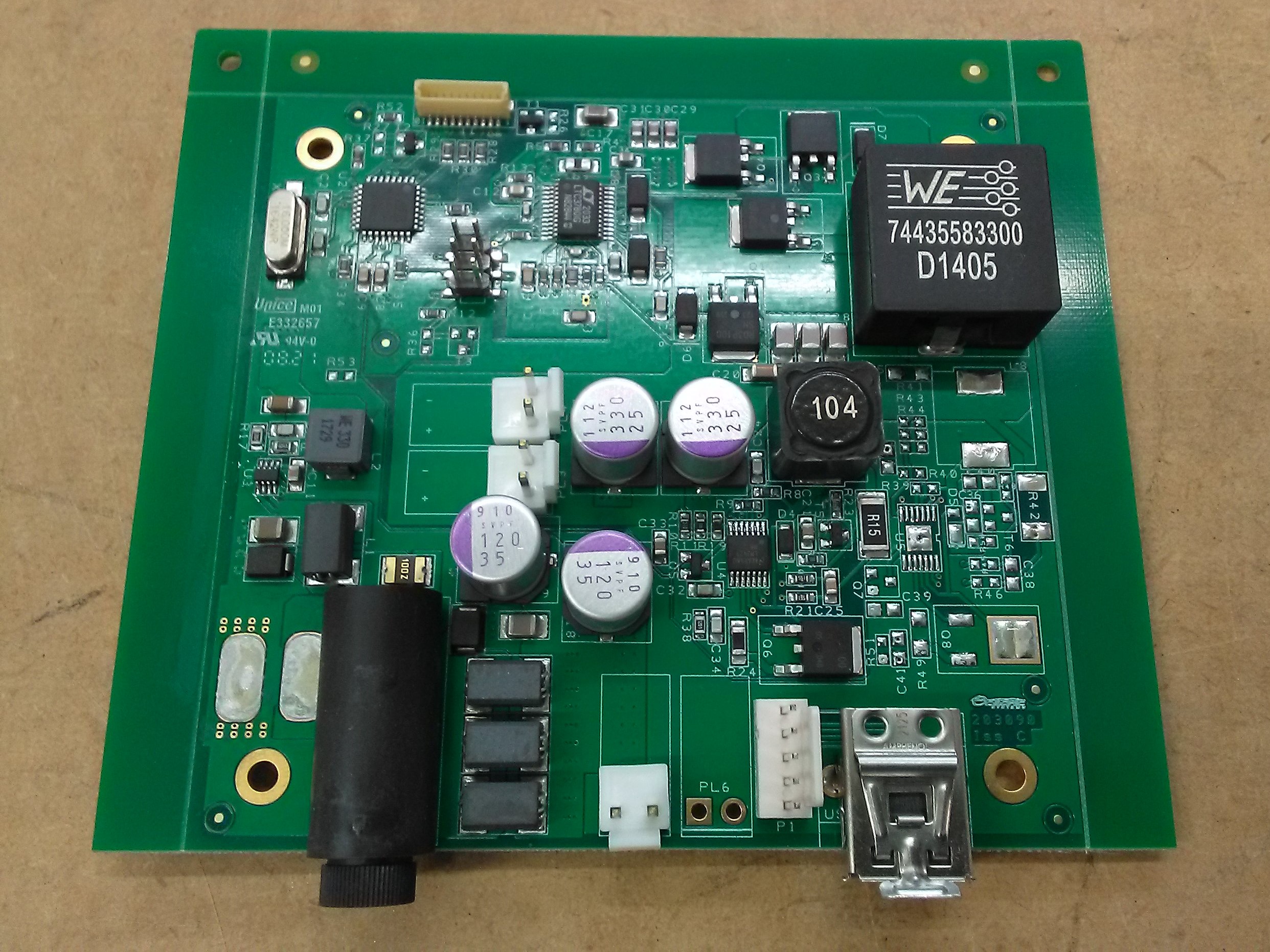

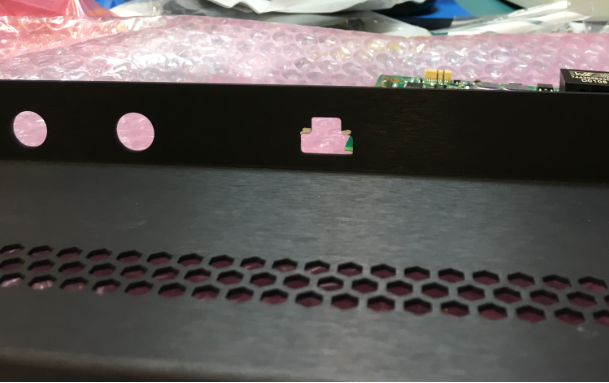

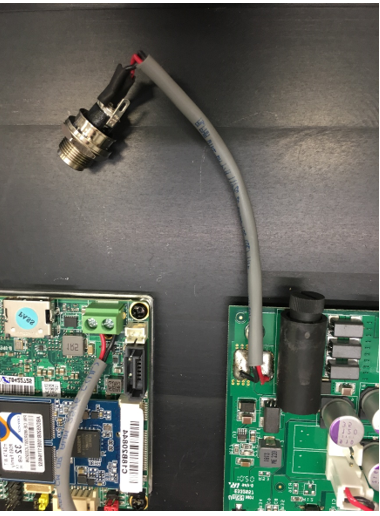

Modify Power connector (203208) Remove power connector and turn 180 degrees, ensure the + and – are in the correct position. Place heat shrink on cable (200584) and solder red and black wire to power connector (202433) on power PCB (10292-C) then heat shrink cable. See pic.

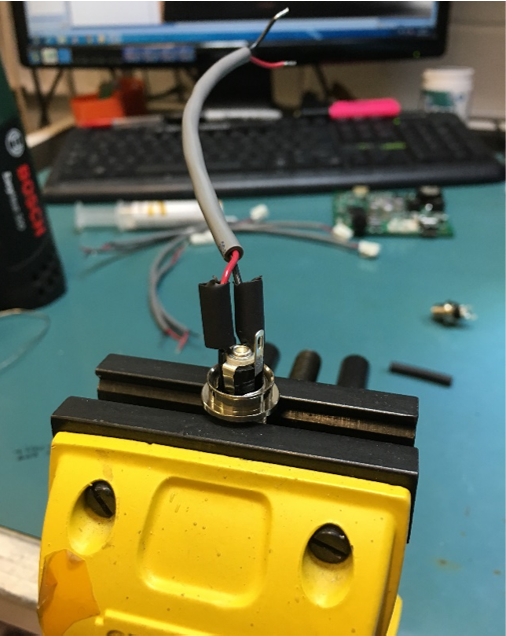

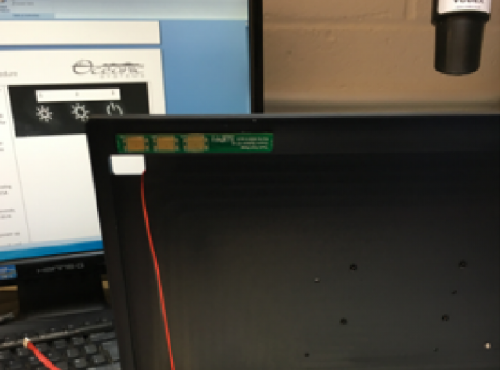

Lightly De-burr 10851- B PCB and Use thin double sided tape on each end to hold in place, see pics below. Ensure all three pads have been modified.

Modify 10866 cable assy by removing current connectors and replacing them with 203793 crimp, and 203794 connector on one side. Then 203421 connector and 203422 crimp on the other end. (Ref 10871 drawing)

Insert holes on Bezel with 4 x (203324) Standoffs. Fix Power PCB into position using 4 x (202429) Screws and 4 x (200508) washers.

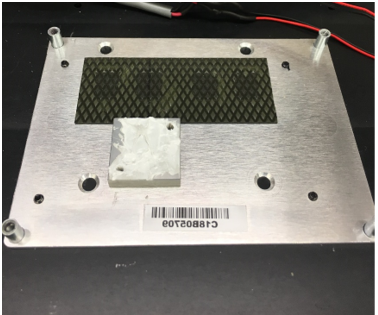

Fit heat spreader (203230) to Bezel using screws provided (use smallest screws here, see pic below)

Fit Sata board (203204) to (203208) board Use Loctite 222 with screws provided see pics below.

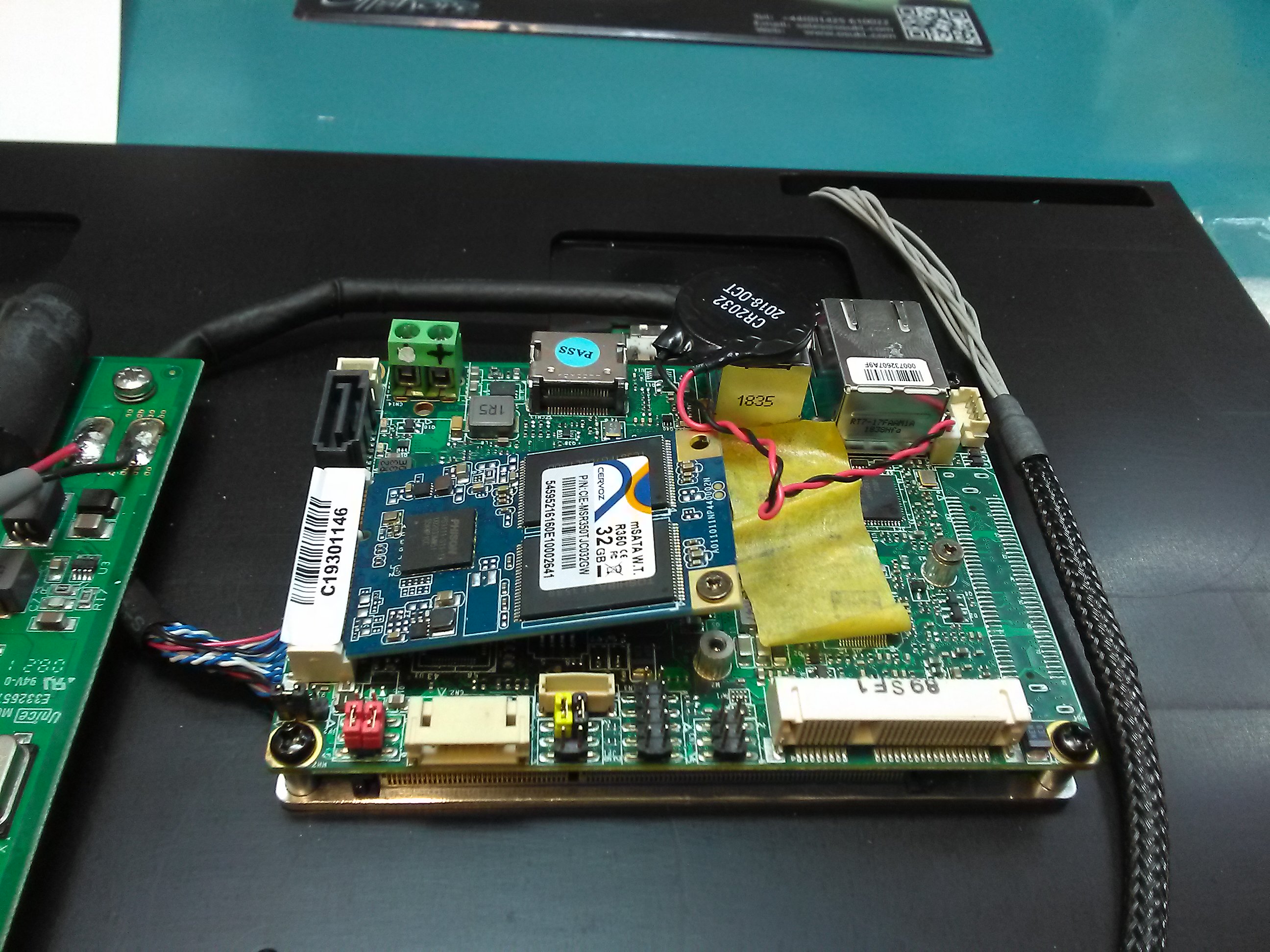

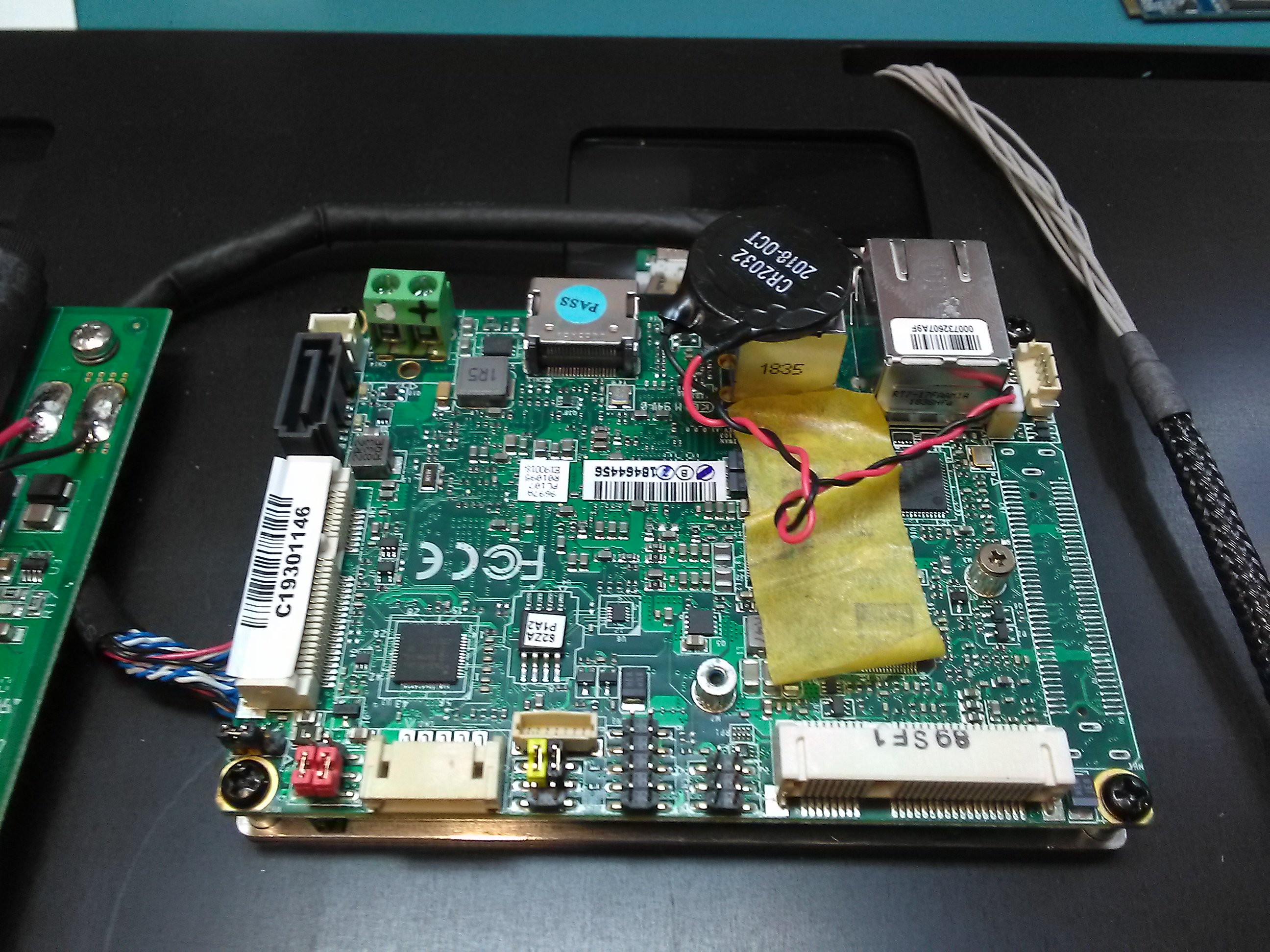

Fit memory card (203303) to underside connection point of (203208) Board Add Heatsink compound to heat spreader Fix PCB (203208) into position with long screws provided with PCB, use Loctite 222. Solder Red and Black wire from connector (202433) to power board (10292-C) see pic below

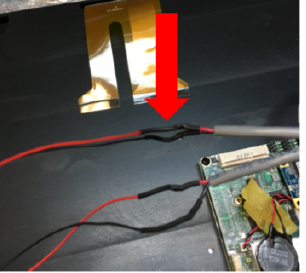

Twist and solder the red and black wire and heat shrink into place, see pic below
