9101 - Seatek Testing Procedure

This procedure follows steps for testing the 9101 - Seatek Engine Adapter

You will need the following tools:

  • Seatek Engine Test Box:

  • Monex Installed on your PC
  • A 24V Power Supply
  • Small Flat-Head Screwdriver

Assembling/Connecting Seatek Engine Adapter to Test Box

This Section outlines all connections that need to be made before testing can begin

Step 1

Remove the Back cover off the Seatek Test box:

Step 2

Strip 5-10cm of each coloured wire from the Seatek Ignition cable and connect to the test box as shown below:

An Examle of how it should look is shown below:

Step 3

Put the Cover Back onto the Seatek Test Box

Step 4

Connect the Seatek Engine Cable to the Seatek Test Box. Twist the Connector ring until secure.

Step 5

Connect NMEA Connector to the Seatek Engine Adapter.

Make sure that the Seatek Engine Adapter instance switch is set to '0'

Step 6

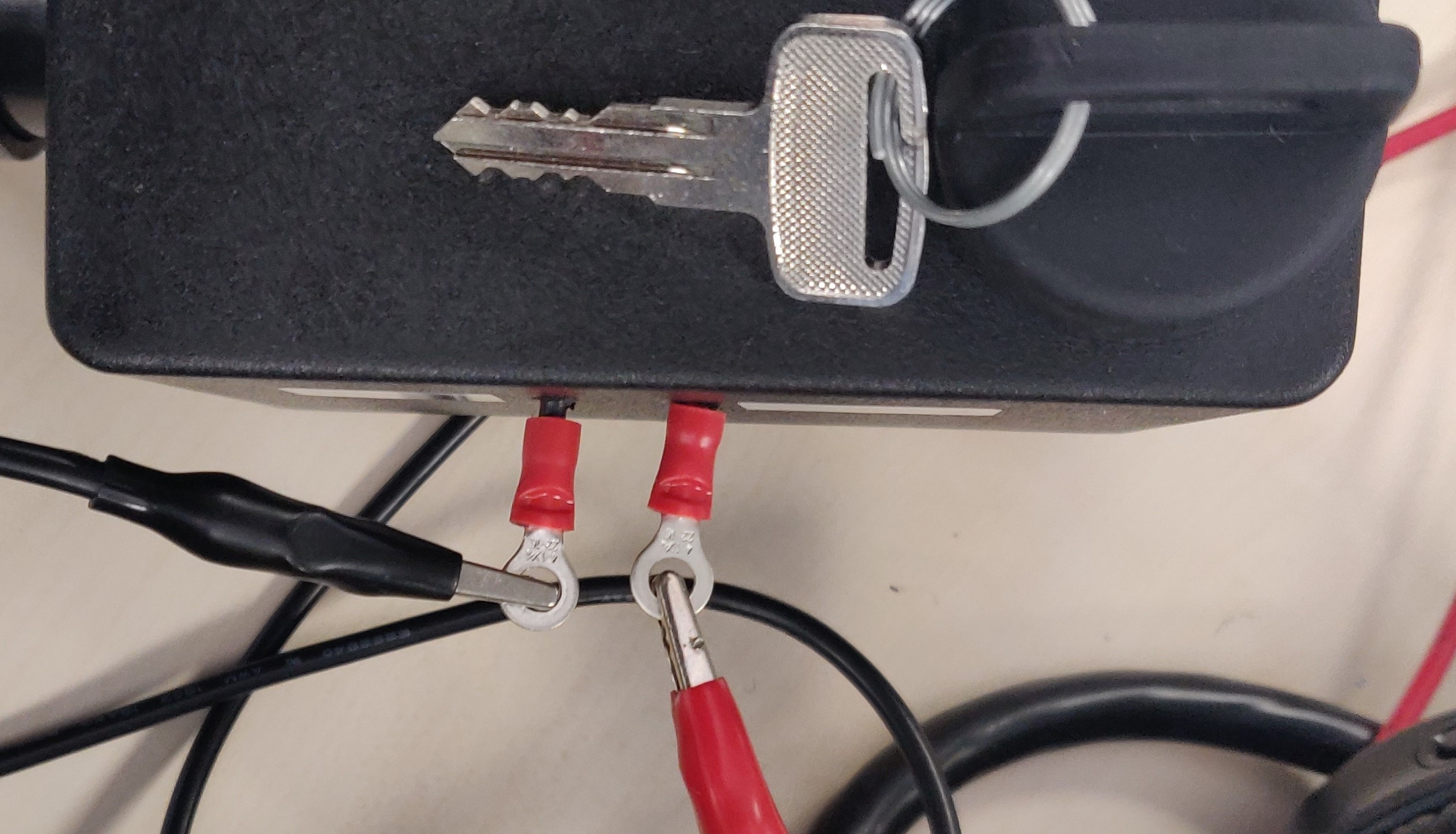

Connect a 24V power supply to the labeled wires on the Seatek Test box. Pay Attention to the wire colours and make sure they are not touching

Step 7

Open the Monex Software to the 'Device Info' Tab. You should see this:

Step 8

Turn all the Switches to Position '1' and turn the 'ignition switch to the very left. (It should be in a vertical position) Use the Image below for reference.

Step 9

Turn on the power supply (24V). Click on 'Get Serial' and 'Get ProdInfo', it should display the following:

Step 10

Go to the 'Engine' tab in Monex:

You Will See:

Set The 'Instance' to 0.

Step 11

Turn the ignition switch to the right (45 deg) to turn the ignition on:

You will see the 'Ignition' box light red on Monex:

ADD PIC FOR 45 DDeg Switch

Step 12

Now Test if the 'Start' functionality works correctly.

Turn the Ignition switch all the way to the right until you see the red LED light on the Seatek Test Box.

The 'Start' box on monex should light yellow, and the 'Stop' box on Monex should stop being red.

When you release the switch, both should return to as they were before.

ADD PICTURE OF 90deg SWITCH

Step 13

Check that the Alternator Volts readings are correct:

Turn the ignition switch 'off' (vertical) - The Aux Voltage Reading on Monex should go to 0V.

When the ignition switch is turned 'on' (45deg) - The Aux Voltage Reading should approximately match the Main Voltage On Monex(Approx 24V)

Step 14

Turn down the voltage on the power supply and watch the Alternator Voltage section (On Monex) match the voltage of the power supply.

Return the voltage to 24V when this step is complete.

Step 15

The RPM reading should be 2550 (+-30)

Step 16

Now Turn Switch 1 (SW1) using a flat head screwdriver and observe the Transmission Oil Tab on Monex.

You Should Get the following Results:


Switch Number —– Value

0 ——————— 0 Bar

1 ——————— 1.875 Bar

2 ——————— 7.5 Bar

3 ——————— 13.33 Bar


Step 17

Now Turn Switch 2 (SW2) using a flat head screwdriver and observe the STBD Turbo Pressure Tab on Monex.

You Should Get the following Results:


Switch Number —– Value

0 ——————— 0 Bar (Anything Below 0 is fine)

1 ——————— 0.3125 Bar

2 ——————— 1.25 Bar

3 ——————— 2.222 Bar


Step 17

Now Turn Switch 3 (SW3) using a flat head screwdriver and observe the PORT Turbo Pressure Tab on Monex.

You Should Get the following Results:


Switch Number —– Value

0 ——————— 0 Bar (Anything Below 0 is fine)

1 ——————— 0.3125 Bar

2 ——————— 1.25 Bar

3 ——————— 2.222 Bar


Step 18

Now Turn Switch 4 (SW4) using a flat head screwdriver and observe the OIL Pressure Tab On Monex.

You Should Get the following Results:


Switch Number —– Value


0 ——————— 0 Bar (Anything Below 0 is fine) The RIGHT Green LED will Turn on

1 ——————— 0.3125 Bar

2 ——————— 1.25 Bar

3 ——————— 2.222 Bar
